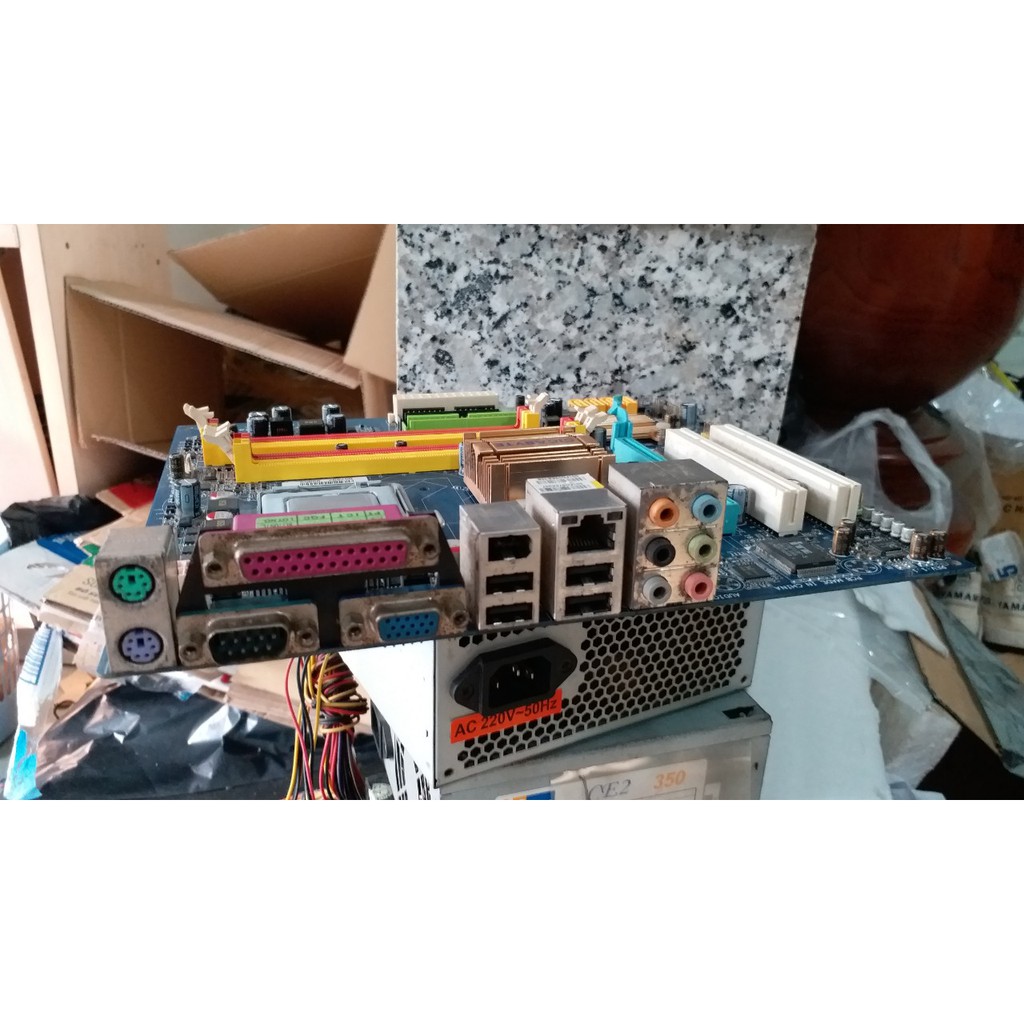

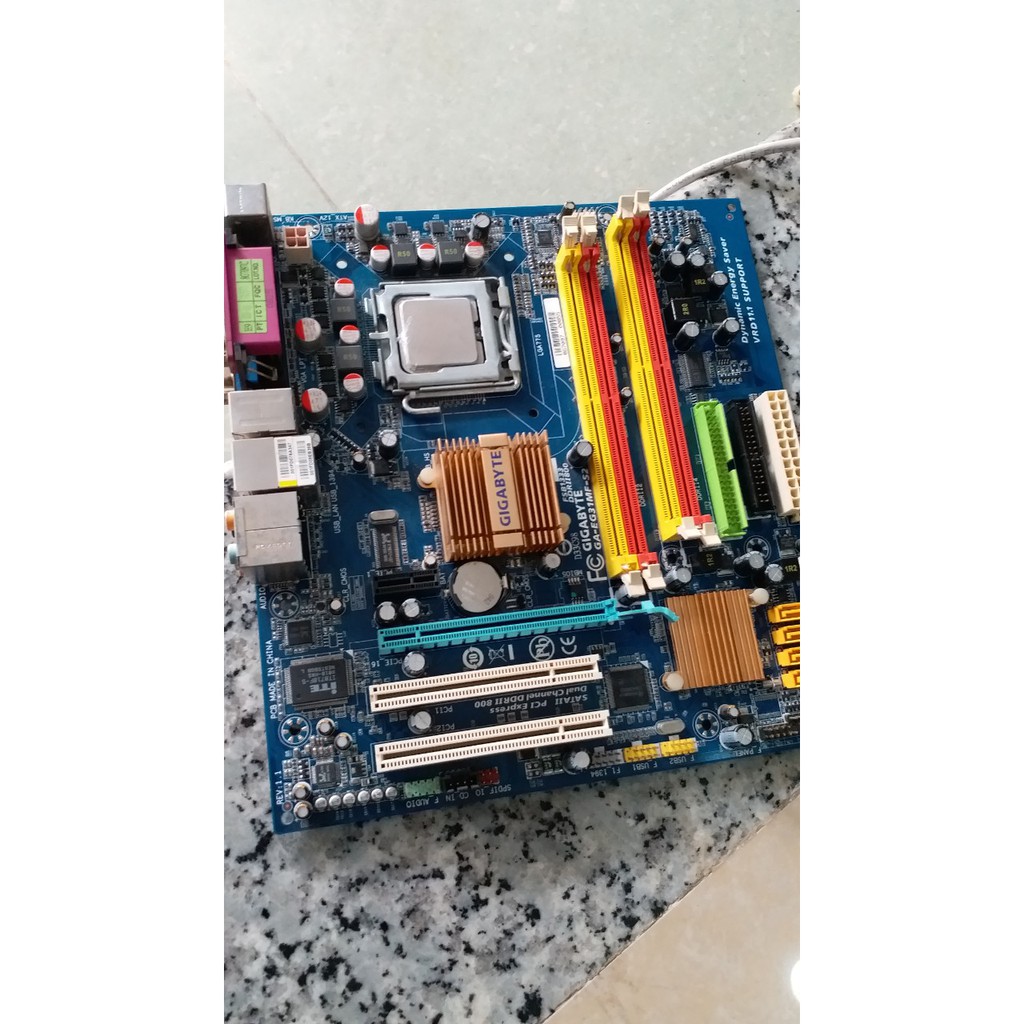

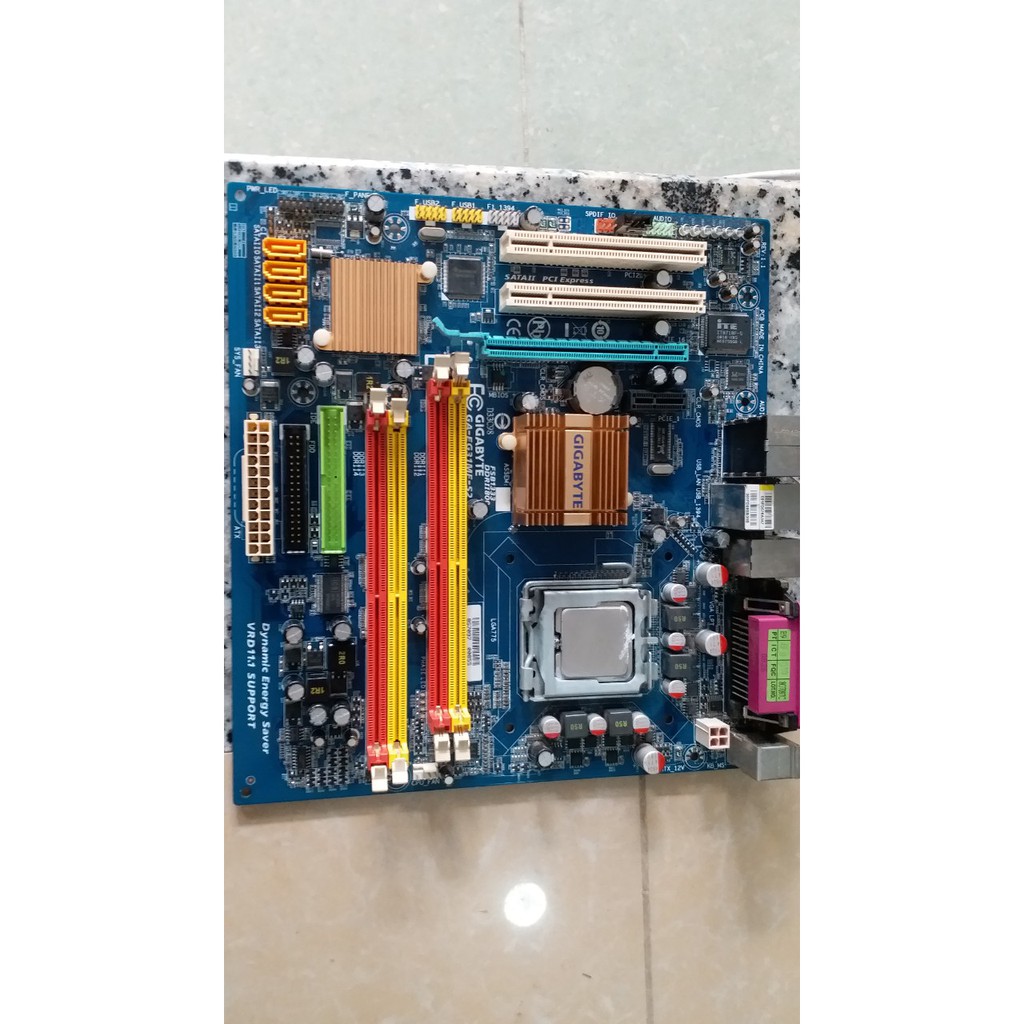

Bo mạch chủ GIGABYTE GA-EG31MF-S2 (Cũ)

Cập nhật: 06/07/2018 - 09:30 Tình trạng: Cũ Bảo hành: 3 Tháng Nguồn gốc: Chính hãng Manufacture (Hãng sản xuất) GIGABYTE Socket Intel Socket 775 Form Factor MicroATX (uATX) Chipset Intel G31 / ICH7 CPU Support (Loại CPU hỗ trợ) (1) • Intel Pentium 4 • Intel Pentium D • Intel Celeron • Intel Core 2 Duo • Intel Core 2 Extreme • Intel Core 2 Quad • Intel Pentium Extreme Front Side Bus (FSB) • 800MHz (1600 MT/s) • 1066Mhz • 1333Mhz • 1600Mhz Memory Slot (Số khe cắm ram) 4 Max Memory Support (Gb) 4 Memory Type (Loại Ram sử dụng) DDR2 Memory Bus • 667Mhz • 800Mhz Internal I/O Connectors (Các kết nối bên trong) • USB 2.0 connectors • Floppy disk drive connector • SATA connectors • Fan connectors • IEEE 1394a connector • 24-pin ATX Power connector • 4-pin ATX 12v Power connector • IDE • S/P DIF input/output pin header • CD / AUX audio in Back Panel I/O Ports (Cổng kết nối phía sau) • LAN (RJ45) port • USB 2.0/1.1 ports • IEEE 1394a port • PS/2 port • LPT / Parallel port • Audio I/O • VGA onboard (D-sub) Expansion Slot (Khe mở rộng) • PCI • PCI Express x1 • PCI Express x16 (x1) Other Supports (Công nghệ hỗ trợ khác) • - Other Features (Tính năng khác) Lan: - Realtek 8111C chip (10/100/1000 Mbit) Audio: 1. Realtek ALC888 codec 2. High Definition Audio 3. 2/4/5.1/7.1-channel 4. Support for S/PDIF In/Out 5. Support for CD In Other: 1. Support for @BIOS 2. Support for Download Center 3. Support for Q-Flash 4. Support for EasyTune 5. Support for Xpress Install 6. Support for Xpress Recovery2 7. Support for Virtual Dual BIOS 8. Support for Dynamic Energy Saver Advanced Driver Chi tiết Website Chi tiết
